Container Types & Measurement

For Reference Only. Please contact us for more details.

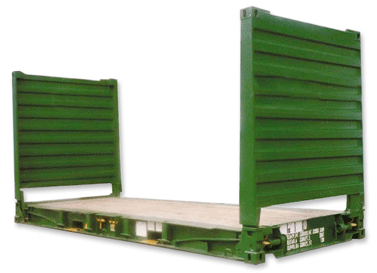

Flat Rack

Type	Internal Dimensions			Btw Headers	Btw Corners		Weight
	Length	Width	Height	Length	Length	Width	Maximum Payload	Tare Weight	Maximum Gross
20 ft	5.96 m	2.40 m	2.29 m	5.85 m	5.42 m	2.06 m	37,000 kgs	3,000 kgs	40,000 kgs
	19′ 7″	7′ 10″	7′ 6″	19′ 2″	17′ 9″	6′ 9″	81,571 lbs	6,613 lbs	88,184 lbs
40 ft	11.65 m	2.37 m	1.96 m	12.06 m	11.66 m	2.22 m	44,650 kgs	5,250 kgs	50,000 kgs
	38′ 3″	7′ 9″	6′ 5″	39′ 7″	38′ 3″	7′ 3″	98,436 lbs	11,574 lbs	110,231 lbs

Dry Cargo

Type	Inside Dimensions			Door Opening			Weight
	Length	Width	Height	Width	Height	Inside Cubic	Tare	Payload	Gross Weight
20 ft	19′ 4.1″	7′ 8.6″	7′ 10.2″	7′ 8.1″	7′ 5.8″	1,173 cu.ft.	5,200 lbs	47,710 lbs	52,910 lbs
40 ft	39′ 5.4″	7′ 8.6″	7′ 10.2″	7′ 8.1″	7′ 5.8″	2,390 cu.ft.	8,710 lbs	62,940 lbs	71,650 lbs

High Cube

Type	Inside Dimensions			Door Opening			Weight
	Length	Width	Height	Width	Height	Inside Cubic	Tare	Payload	Gross Weight
40 ft	39′ 5.7″	7′ 8.6″	8′ 10.3″	7′ 8.1″	8′ 5.8″	2,696 cu.ft.	9,150 lbs	62,500 lbs	71,650 lbs
45 ft	44′ 5.7″	7′ 8.6″	8′ 10.1″	7′ 8.1″	8′ 5.8″	3,040 cu.ft.	10,360 lbs	61,290 lbs	71,650 lbs

Open Top

Type	Inside Dimensions			Weight
	Length	Width	Height	Tare	Payload	Gross Weight
20 ft	19’4″	7′ 8.5″	7′ 8.7″	5,290 lbs	61,910 lbs	67,200 lbs
40 ft	39′ 5.5″	7′ 8.6″	7′ 7.7″	8,880 lbs	58,320 lbs	67,200 lbs

Type	Door Opening			Roof Opening
	Width	Height	Inside Cubic	Length	Width	Measure
20 ft	7′ 8.1″	7′ 5″	1,150 cu.ft.	17′ 8.6″	7′ 3.9″	Inside
40 ft	7′ 8.1″	7′ 5″	2,330 cu.ft.	37′ 10″	7′ 3.9″	Inside

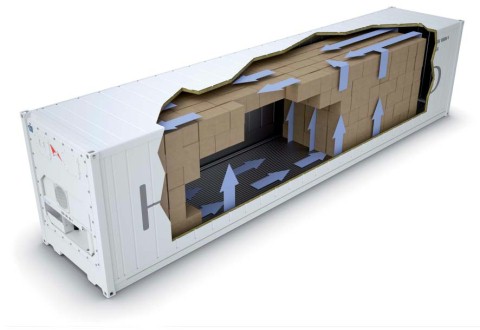

Reefer

Type	Inside Dimensions			Door Opening			Weight
	Length	Width	Height	Width	Height	Inside Cubic	Tare	Payload	Gross Weight
20 ft	19′ 10.5″	8′	8′ 6″	7′ 6.2″	7′ 5.2″	1,010 cu.ft.	6,610 lbs	60,590 lbs	67,200 lbs
40 ft	37′ 11.8″	7′ 6.3″	8′ 4.2″	7′ 6.2″	8′ 5.1″	2,390 cu.ft.	10,380 lbs	61,270 lbs	71,650 lbs
